Diode Circuit¶
You can also find this example as a single file in the GitHub repository.This example demonstrates a more complex application of algebraic loop solving: a diode circuit with nonlinear characteristics. This showcases PathSim’s ability to handle nonlinear implicit equations that arise in real electronic circuits.
Circuit Description¶
The circuit consists of:
A sinusoidal voltage source: \(V_s(t) = 5\sin(2\pi t)\) V
A resistor: \(R = 1000\) Ω
A diode with exponential I-V characteristic
Diode Model¶
The diode current follows the Shockley equation:
Where:
\(I_s = 10^{-12}\) A (saturation current)
\(V_T = 26\) mV (thermal voltage at room temperature)
\(V_D\) is the diode voltage

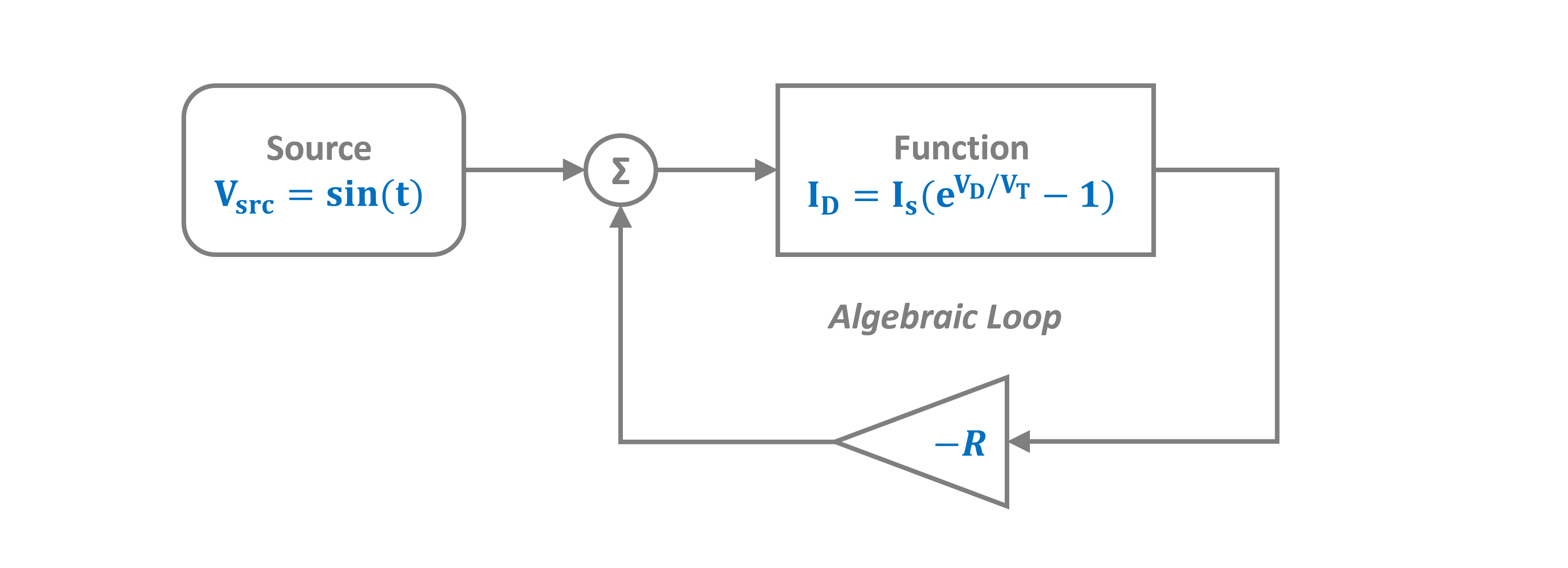

The Algebraic Loop¶
Applying Kirchhoff’s Voltage Law (KVL):
Substituting the diode equation creates a nonlinear algebraic loop:
PathSim solves this nonlinear equation automatically at each timestep using accelerated fixed-point iteration.
This example demonstrates a nonlinear algebraic loop. The Function block implements the diode characteristic, and PathSim solves the implicit circuit equations automatically.
[1]:
import numpy as np
import matplotlib.pyplot as plt
# Apply PathSim docs matplotlib style
plt.style.use('../pathsim_docs.mplstyle')
from pathsim import Simulation, Connection
from pathsim.blocks import Source, Amplifier, Function, Adder, Scope
from pathsim.solvers import RKBS32
Circuit Parameters¶
[2]:
# Circuit parameters
R = 1000.0 # Resistor (Ohms)
I_s = 1e-12 # Diode saturation current (A)
V_T = 0.026 # Thermal voltage at room temperature (V)
# Define diode current function: i = I_s * (exp(v_diode/(V_T)) - 1)
def diode_current(v_diode):
"""Diode current as function of diode voltage"""
# Clip to prevent numerical overflow
clipped = np.clip(v_diode/V_T, None, 23)
return I_s * (np.exp(clipped) - 1)
# Define voltage source function
def voltage_source(t):
"""Sinusoidal voltage source"""
return 5.0 * np.sin(2 * np.pi * t)
[3]:
# Blocks that define the system
Src = Source(voltage_source) # Voltage source
DiodeFn = Function(diode_current) # Diode i-v characteristic
ResAmp = Amplifier(-R) # -R (negative resistance)
Add = Adder() # Adder for KVL
Sc1 = Scope(labels=["v_source", "v_diode"])
Sc2 = Scope(labels=["i_diode"])
blocks = [Src, DiodeFn, ResAmp, Add, Sc1, Sc2]
Connections¶
The connections implement Kirchhoff’s laws:
The adder computes: \(V_{diode} = V_{source} + V_{resistor}\)
The resistor voltage is: \(V_{resistor} = -R \cdot i_{diode}\)
The diode current depends on: \(V_{diode}\) (creating the loop)
[4]:
connections = [
Connection(Src, Add[0], Sc1[0]), # Source to adder and scope
Connection(Add, DiodeFn, Sc1[1]), # Diode voltage to function and scope
Connection(DiodeFn, ResAmp, Sc2), # Diode current to resistor and scope
Connection(ResAmp, Add[1]), # Voltage drop back to adder (loop!)
]
Simulation¶
We use a tight convergence tolerance (tolerance_fpi=1e-12) to ensure accurate solution of the nonlinear algebraic equation.
[5]:
# Simulation instance
Sim = Simulation(
blocks,
connections,
dt=0.001,
tolerance_fpi=1e-12
)
# Run the simulation for 2 seconds
Sim.run(duration=2.0)
12:11:45 - INFO - LOGGING (log: True)
12:11:45 - INFO - BLOCKS (total: 6, dynamic: 0, static: 6, eventful: 0)
12:11:45 - INFO - GRAPH (nodes: 6, edges: 7, alg. depth: 1, loop depth: 3, runtime: 0.096ms)
12:11:45 - INFO - STARTING -> TRANSIENT (Duration: 2.00s)
12:11:45 - INFO - -------------------- 1% | 0.0s<0.9s | 2093.6 it/s
12:11:45 - ERROR - algebraic loop not converged (iters: 200, err: 1.787475614641897)
12:11:45 - INFO - FINISHED -> TRANSIENT (total steps: 57, successful: 57, runtime: 60.54 ms)
---------------------------------------------------------------------------
RuntimeError Traceback (most recent call last)
Cell In[5], line 10
2 Sim = Simulation(
3 blocks,
4 connections,
5 dt=0.001,
6 tolerance_fpi=1e-12
7 )
9 # Run the simulation for 2 seconds
---> 10 Sim.run(duration=2.0)
File ~/checkouts/readthedocs.org/user_builds/pathsim/envs/v0.12.0/lib/python3.13/site-packages/pathsim/simulation.py:1771, in Simulation.run(self, duration, reset, adaptive)
1768 break
1770 #advance the simulation by one (effective) timestep '_dt'
-> 1771 success, error_norm, scale, *_ = self.timestep(
1772 dt=_dt,
1773 adaptive=_adaptive
1774 )
1776 #perform adaptive rescale
1777 if _adaptive:
1778
1779 #if no error estimate and rescale -> back to default timestep
File ~/checkouts/readthedocs.org/user_builds/pathsim/envs/v0.12.0/lib/python3.13/site-packages/pathsim/simulation.py:1668, in Simulation.timestep(self, dt, adaptive)
1666 else:
1667 if self.engine.is_explicit:
-> 1668 return self.timestep_fixed_explicit(dt)
1669 else:
1670 return self.timestep_fixed_implicit(dt)
File ~/checkouts/readthedocs.org/user_builds/pathsim/envs/v0.12.0/lib/python3.13/site-packages/pathsim/simulation.py:1310, in Simulation.timestep_fixed_explicit(self, dt)
1307 time_dt = self.time + dt
1309 #evaluate system equation before sampling and event check (+dt)
-> 1310 self._update(time_dt)
1311 total_evals += 1
1313 #handle events chronologically after timestep (+dt)
File ~/checkouts/readthedocs.org/user_builds/pathsim/envs/v0.12.0/lib/python3.13/site-packages/pathsim/simulation.py:935, in Simulation._update(self, t)
933 #algebraic loops -> solve them
934 if self.graph.has_loops:
--> 935 self._loops(t)
File ~/checkouts/readthedocs.org/user_builds/pathsim/envs/v0.12.0/lib/python3.13/site-packages/pathsim/simulation.py:1003, in Simulation._loops(self, t)
999 _msg = "algebraic loop not converged (iters: {}, err: {})".format(
1000 self.iterations_max, max_err
1001 )
1002 self.logger.error(_msg)
-> 1003 raise RuntimeError(_msg)
RuntimeError: algebraic loop not converged (iters: 200, err: 1.787475614641897)
Results: Voltage Waveforms¶
The plots show:
v_source (blue): Input sinusoidal voltage
v_diode (orange): Voltage across the diode
Notice how the diode voltage is:
Clamped near ~0.7V during forward bias (positive half-cycle)
Follows the source during reverse bias (negative half-cycle, diode is off)
This is the classic diode rectifier behavior!
[6]:
Sim.plot()
plt.show()
Diode Current¶
Let’s examine the diode current to see the rectification more clearly.
[7]:
# Get results
time, [i_diode] = Sc2.read()
fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(time, i_diode * 1000, linewidth=2) # Convert to mA
ax.set_xlabel('Time [s]')
ax.set_ylabel('Diode Current [mA]')
ax.set_title('Diode Current (Half-Wave Rectification)')
ax.grid(True, alpha=0.3)
ax.axhline(y=0, color='k', linestyle='--', linewidth=0.8)
plt.tight_layout()
plt.show()
Diode I-V Characteristic¶
We can also visualize the diode’s I-V characteristic by plotting current vs. voltage.
[8]:
# Get diode voltage
_, [v_source, v_diode] = Sc1.read()
# Plot I-V characteristic
fig, ax = plt.subplots(figsize=(8, 4))
ax.axhline(y=0, color='grey', linestyle='--', linewidth=1.8)
ax.axvline(x=0, color='grey', linestyle='--', linewidth=1.8)
ax.plot(v_diode, i_diode * 1000, '.', markersize=3, alpha=0.5)
ax.set_xlabel('Diode Voltage [V]')
ax.set_ylabel('Diode Current [mA]')
ax.set_title('Diode I-V Characteristic (Dynamic Load Line)')
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
